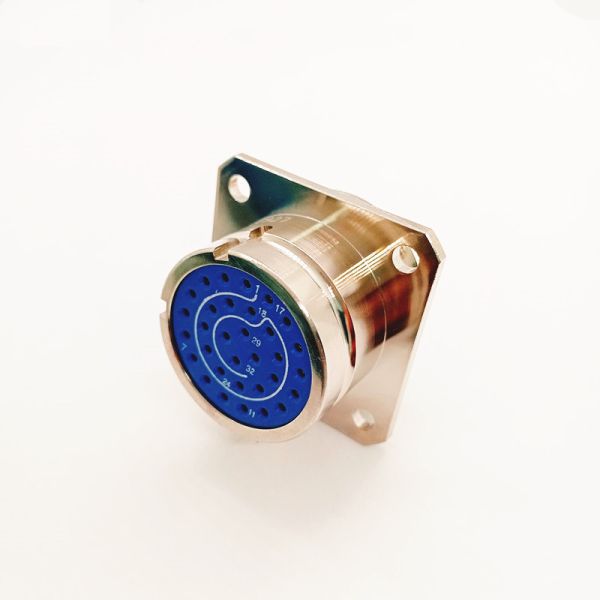

Y3A II-1832ZK10 32 Pin Socket Bayonet Lock Flange Mount Circular Connector
Y3A II-1832ZK10 is a 32-core high-density bayonet-locking circular socket. Adopting flange panel mounting and integral sealing structure, it delivers excellent dustproof and waterproof performance. Made of high-strength alloy housing and gold-plated contacts, this socket features low contact resistance, outstanding vibration and shock resistance, and stable electrical performance. It supports quick mating and blind insertion, with a wide working temperature range and long service life. Widely applied in aerospace, industrial control, communication and other harsh-environment electronic systems for reliable signal and power transmission.
Product display
Product Performance Details
| Product model |
Y3AII-1832ZK10 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
5A |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
