Gold-plated brass SMA Female Right Angle PCB DC-6GHz Connector
SMA‑KWE right‑angle SMA female connector is a through‑hole THT type for PCB soldering. Gold‑plated brass construction delivers stable 50‑ohm impedance, low VSWR and low insertion loss across DC‑6GHz. Threaded locking ensures reliable mating for antenna, WiFi, RF module and wireless communication devices
Product display
Product Performance Details
|
Product model
|
SMA-KYWE |
Dielectric constant |
≥5000MΩ
|
|
Characteristic impedance
|
50 ohm |
Body material |
Gold-plated brass |
|
Frequency range
|
DC-6GHz |
Central conductor
|
Gold-plated brass |
|
Voltage standing wave ratio
|
≤1.25 |
Insulator material |
PTFE |
|
Medium pressure resistance
|
≥1000V RMS ,50hz, at sea level |
Durability |
≥500 Cycles |
|
Contact resistance
|
Center contact:≤3mΩ
Outer contact:≤2mΩ
|
Temperature range |
-45℃~+125℃ |

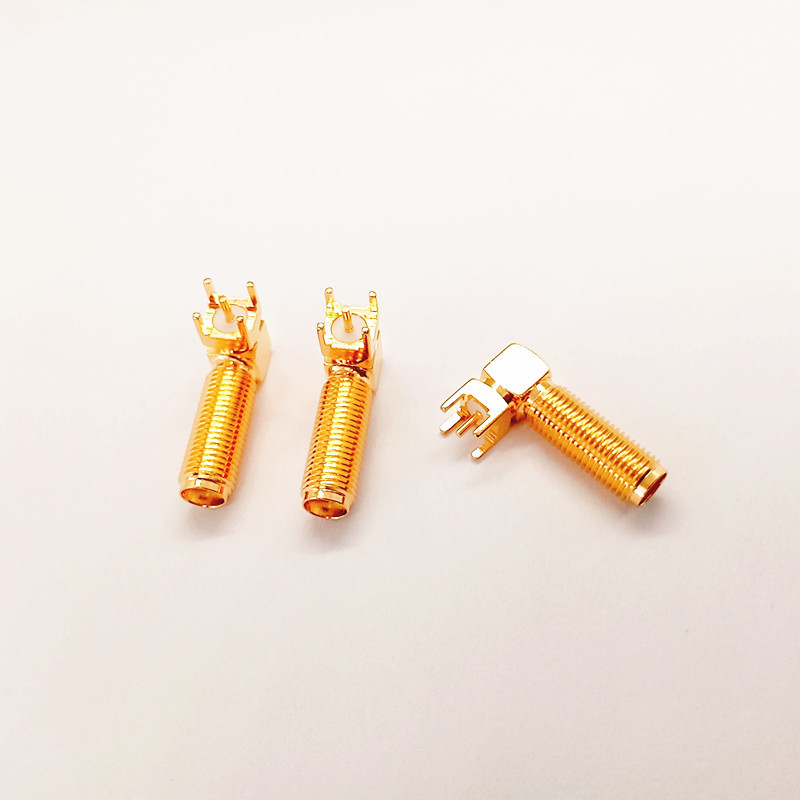

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
