RF Adapter N-Type Plug To SMA Socket Adapter N Type (Male) To SMA (Female) N/SMA-JK

Supply Ability : 1000000Pcs/Year

Name : RF Connector N/SMA-JK

Model Number : N/SMA-JK

Insulator material : PTFE

MOQ : 10 pcs

Delivery Time : 5-8 Days

VSWR : ≤1.2

Payment Terms : T/T,D/P,Alipay

Gender : Male/female

Working temperature : -45℃~+125℃

Price : $1.18 --$1.65(Depending on the quantity )

Boday Material : Brass

Certification : ISO9001

Place of Origin : China

Packaging Details : Carton packaging

Brand Name : ZSX

Contact Now

RF Adapter N-Type Plug To SMA Socket Adapter N Type (Male) To SMA (Female)

N/SMA-JK is straight 50Ω RF adapter with N male plug to SMA female jack. DC~18GHz wide frequency, low VSWR ≤1.2, tiny insertion loss. Brass nickel-plated housing, gold-plated beryllium copper contact, PTFE insulator, durable over 500 mating cycles. Perfect for VNA testing, antenna, 5G equipment, radar and microwave measurement. Factory direct supply with customization support.

Product Performance Details

Product model	N/SMA-JK	Contact resistance SMA	Center contact:≤3mΩ Outer contact:≤2mΩ
Characteristic impedance	50 ohm	Body material SMA	Gold-plated brass
Frequency range	DC-6GHz	Body material N	Nickel-plated brass
Voltage standing wave ratio	≤1.2	Central conductor	500 times
Medium pressure resistance	≥1000V RMS ,50Hz, at sea level	SMA screw sleeve	5 A
Dielectric constant	≥5000MΩ	Temperature range	-45℃~+125℃
Contact resistance N	Center contact:≤1mΩ Outer contact:≤0.2mΩ	Durability	≥500 Cycles

Product Show

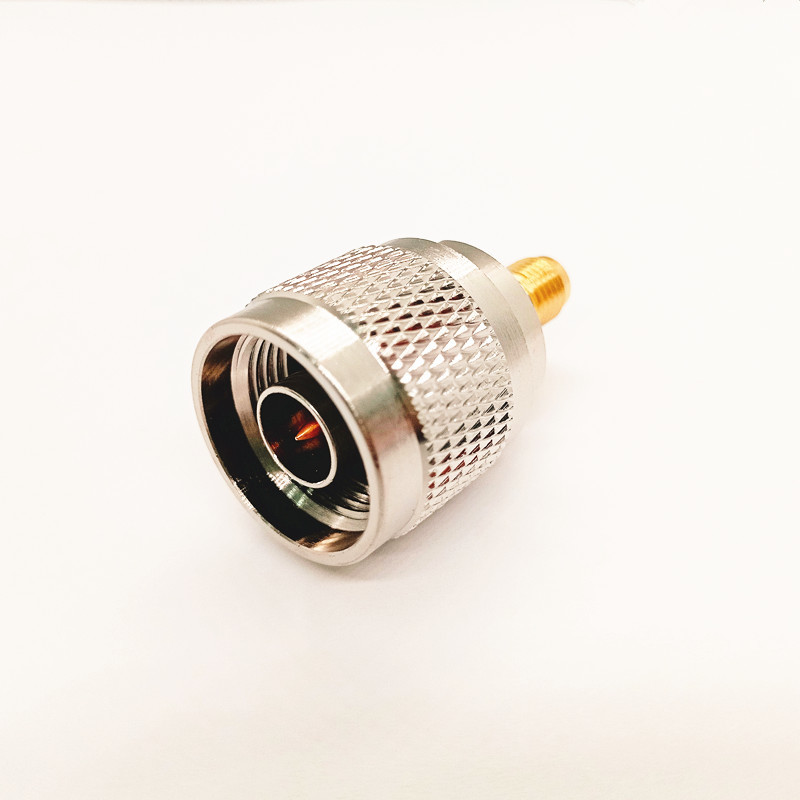

RF Adapter N-Type Plug To SMA Socket Adapter N Type (Male) To SMA (Female) N/SMA-JK

Product external dimensions

Packaging And Shipping

Standard export carton
As per customized specifications such as logo or others According to customers' requirements
Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
