CDb Series 25 Pin Female Socket Connector Crimping Type CDbF-25Z Connector
CDbF-25Z is a 25-Pin female micro rectangular socket from CDbF connector series. Utilizing twisted elastic contact pins, this connector provides stable electrical performance against vibration and impact. With anti-misinsertion structure and compact housing, it mates perfectly with CDbF-25T plug. Custom cable assemblies are offered for signal interconnection in aerospace, precision instruments and industrial control systems.
Product display
Product Performance Details
| Product model |
CDbF-25Z |
Contact resistance |
≤8mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 50m/s2 |
Pressure resistance |
600V |
| Relative humidity |
+40℃,96% |
Mechanical life |
500 times |
| Low pressure |
4.4KPa,150V |
Working current |
5 A max |

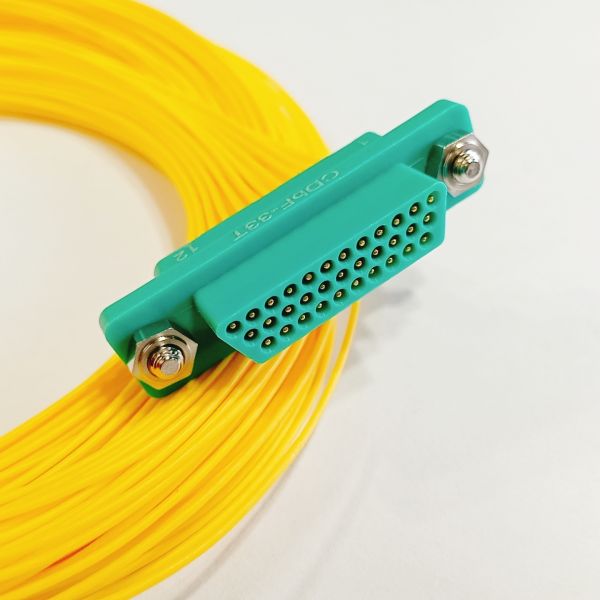

Physical product display

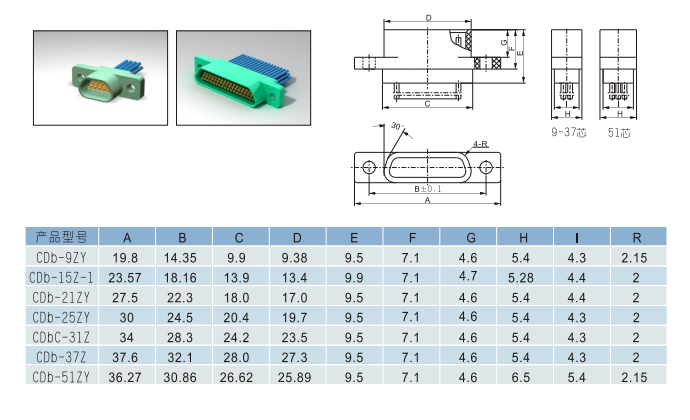

Product external dimensions
Related product recommendations
Product selection reference
CDbF plug size
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
