MIL-DTL-83513 Compliant MDM Connector High Density Miniature Interconnect MDM-25S
MDM Connector is the abbreviation of Micro-D Metal Connector (Micro D-type metal connector), which is a type of micro-rectangular electrical connector. It is specially designed for high-reliability, high-density and miniaturized applications and is widely used in harsh environments such as aerospace, aerospace, medical and industrial control. The micro D-sub connector complies with MIL-DTL-83513 (US aerospace standard) and GJB2446A (US aerospace standard), featuring a terminal pitch of 1.27mm (0.050 inches). Its volume is only half that of the standard D-sub connector, with a significant reduction in weight while maintaining highly reliable connection performance.
Product display
Product Performance Details
| Product model |
MDM-25S |
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
500 times |
| Impact |
735m/s2 11ms |
Rated current |
3 A |

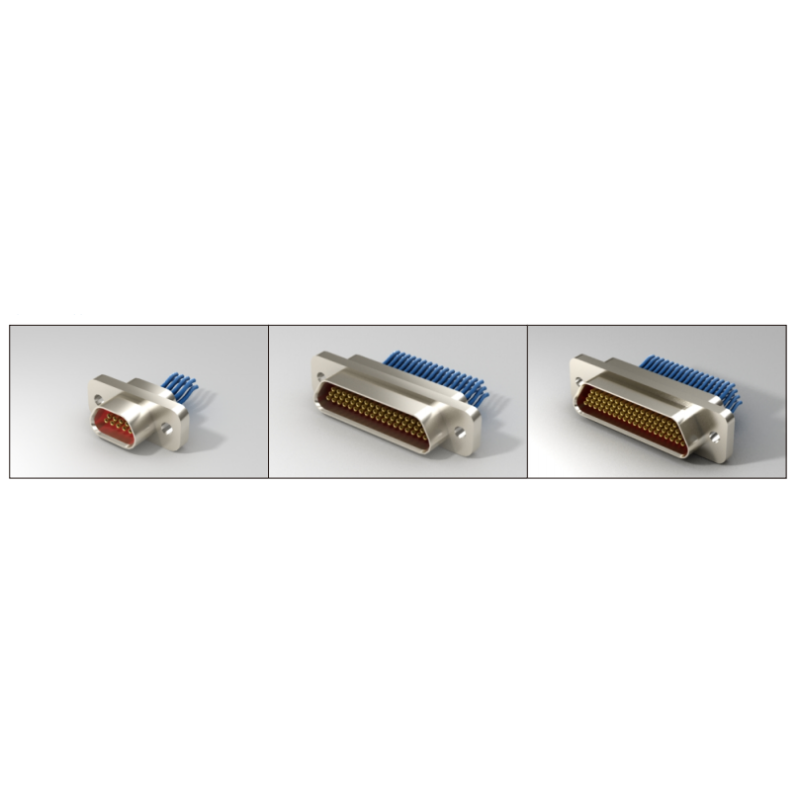

Physical product display
Product appearance drawing
Related product recommendations
Product selection reference
Shell size
Appearance diagram after matching
Display of strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
