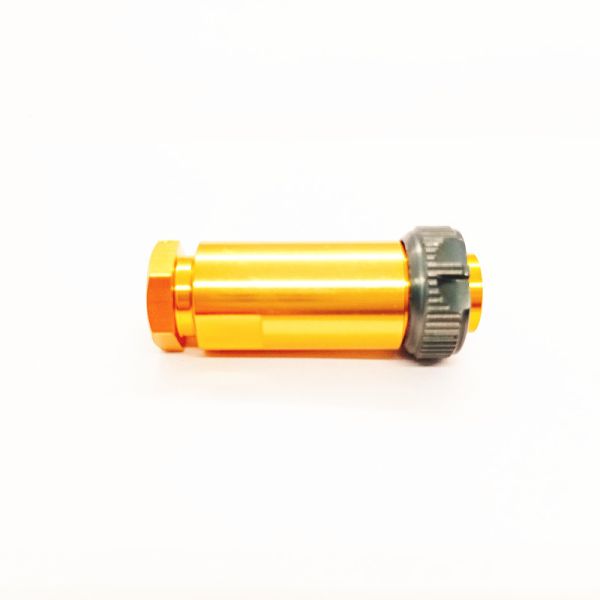

PC Seires 7 Pins Socket Pin Circular Connector Russian Standard Industrial Grade
PC series of ultra-small circular electrical connectors are used for circuit connections in radio and electrical equipment. Connect the cable plug to the socket fixed on the device through a threaded connection nut. The two devices can also be directly connected (docked) through the plugs and sockets installed on each device. Ultra-small circular electrical connectors are available in both sealed and unsealed types. The plugs and sockets can be equipped with tail accessories respectively. Pins are installed on sockets and holes on plugs.
Product display
Product Performance Details
| Product model |
PC-7ZF |
FContact resistance |
≤5mΩ |
| Ambient temperature |
-60℃~+140℃ |
Insulation resistance |
≥1000MΩ |
| Vibration acceleration |
5Hz~2500Hz PC15g,PCM18g |
Insulation voltage intensity |
1000V |
| Impact acceleration |
PC multiple times 50g, PCM18g |
Mechanical life |
250 times |
| Working voltage |
200V |
Insulator material |
Bakelite |
| Diameter of contact piece |
φ1.0 mm |
Bodyl material |
Aluminum alloy |
Physical product display
Related product recommendations
Product selection reference
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
