Circular Connector PC Series 19 Pins Socket Pin Connector
PC series of ultra-small circular electrical connectors are used for circuit connections in radio and electrical equipment. Connect the cable plug to the socket fixed on the device through a threaded connection nut. The two devices can also be directly connected (docked) through the plugs and sockets installed on each device. Ultra-small circular electrical connectors are available in both sealed and unsealed types. The plugs and sockets can be equipped with tail accessories respectively. Pins are installed on sockets and holes on plugs.
Product display
Product Performance Details
| Product model |
PC-19ZF |
FContact resistance |
≤5mΩ |
| Ambient temperature |
-60℃~+140℃ |
Insulation resistance |
≥1000MΩ |
| Vibration acceleration |
5Hz~2500Hz PC15g,PCM18g |
Insulation voltage intensity |
1000V |
| Impact acceleration |
PC multiple times 50g, PCM18g |
Mechanical life |
250 times |
| Working voltage |
200V |
Insulator material |
Bakelite |
| Diameter of contact piece |
φ1.0 mm |
Bodyl material |
Aluminum alloy |

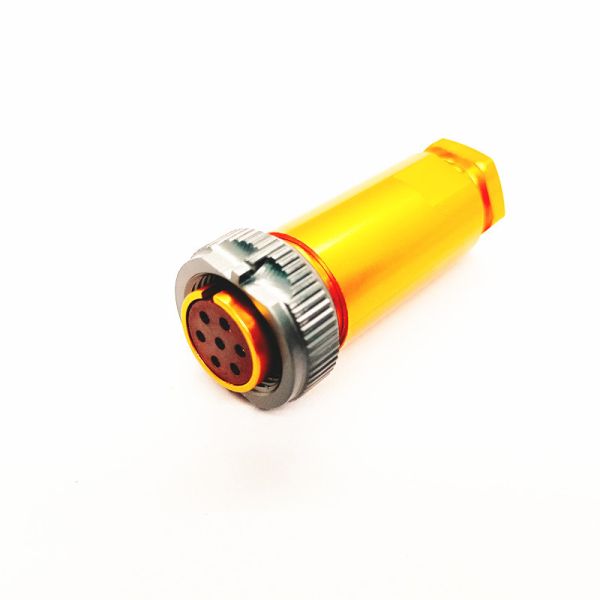

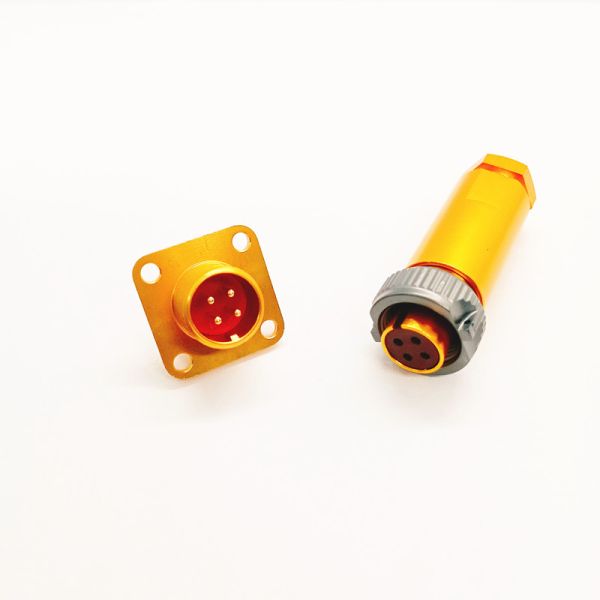

Physical product display
Related product recommendations
Product selection reference
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
