3A 51 Pin Connector Metal Female Jack Connectors 1.27mm J30J-51ZKP-A
J30J-51ZKP-A Micro D Connectors 51 Pins Jack (Female) Connector With Shielding Braid Cable Clipper
J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size. The casing is made of metal and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets can be threaded locked, guided, and prevent misinsertion, etc. The termination forms include crimping, direct insertion, bending insertion, and welding, etc. Among them, the cross-sectional area of the crimped wire is 0.1mm² to 0.15mm², which is suitable for the interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.
Product Performance Details
| Product model |
J30J-51ZKP-A |
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s² |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G²/Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
500 times |
| Impact |
735m/s² 11ms |
Rated current |
3 A |
Product Display

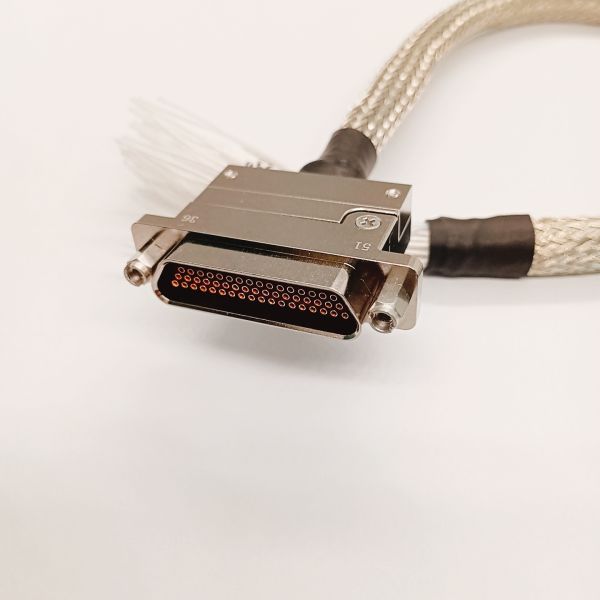

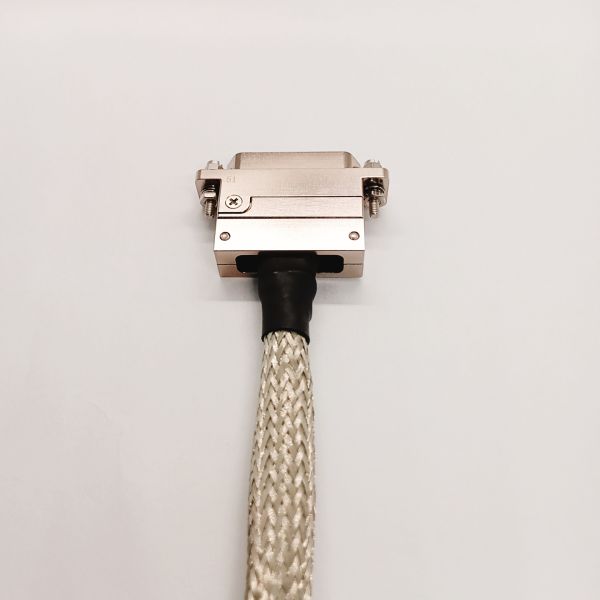

Product Appearance
Related Product Recommendations
Product Selection Reference
Appearance Diagram After Matching
Production Facilities
Machining Production Workshop
Precision Assembly Production Workshop
Glass-to-Metal Sealed Production Workshop
Obtained Certification Certificate
Customer Visit
Product Packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities, ODM, etc.)
