Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire

Gender : Female to male

Working temperature : -20℃~+80℃

Brand Name : ZSX

Name : Cable Assembly

Boday Material : Nickel plated brass

Delivery Time : 5-8 Days

Insulator material : PE

Model Number : N-C-KY-1.5/SMA-C-JW-RG316-25CM

Certification : ISO9001

Place of Origin : China

MOQ : 20 pcs

Supply Ability : 1000000Pcs/Year

Price : Depending on the quantity

Payment Terms : T/T,D/P,Alipay

Packaging Details : Carton packaging

Contact Now

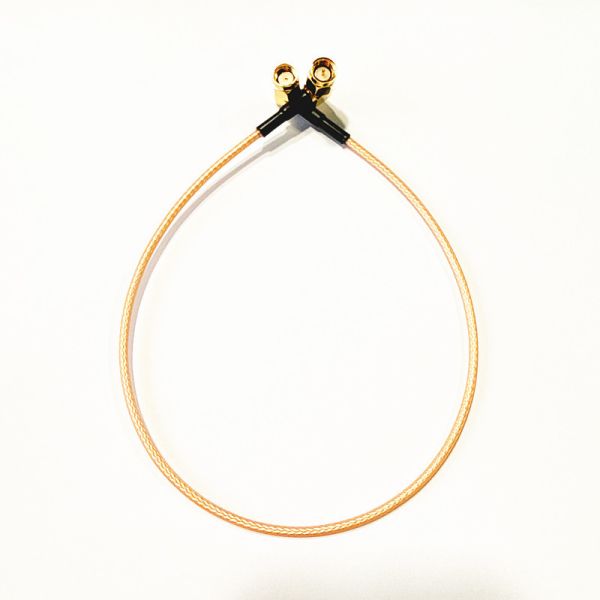

RF Cable Assembly RPSMA Male R/A Crimp To SMA Male R/A With RG316 Coaxial Jumper Wire

Product Overview

high-performance RF cable assembly features an RP-SMA male crimp connector on one end and a standard SMA male connector on the opposite end, paired with durable RG316 coaxial cable. Built with low-loss transmission, superior shielding and stable 50Ω impedance, it effectively reduces signal attenuation and electromagnetic interference. Flexible, bend-resistant and weatherproof, this customized jumper ensures reliable high-frequency signal transmission, ideal for wireless devices, communication modules, test instruments and industrial RF connection systems.

Product Specifications
Product Model RPSMA-C-JW-1.5/SMA-C-JW-1.5-RG316-30CM
Inner Conductor Material Silver-plated copper wire
Insulating Layer Polytetrafluoroethylene (PTFE)
Outer Conductor Silver-plated copper wire
Outer Protective Layer Perfluoroethylene-propylene copolymer (FEP)
Bending Radius 13mm
Impedance 50±2
Temperature Range -20℃ to +80℃
Maximum Operating Voltage 1500VMS
Maximum Operating Frequency 3000MHz
Product Images
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Related Products
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Manufacturing Capabilities
Machining Production Workshop
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Precision Assembly Production Workshop
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Glass-to-Metal Sealed Production Workshop
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Quality Certifications
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Customer Visits
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Product Packaging
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
Packaging and Shipping
Low-Loss RF Cable Assembly with 50Ω Impedance and Weatherproof RG316 Coaxial Jumper Wire
  • Standard export carton packaging
  • Customized specifications including logos available upon request
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is higher for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Alipay, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
