DC-6GHz TNC Female to SMA Male Straight Adapter
50Ω TNC female to SMA male adapter delivers low VSWR, low insertion loss, and reliable performance up to 18GHz. Featuring gold-plated contacts, a rugged nickel-plated brass body, and PTFE insulation, it ensures corrosion resistance, anti-vibration, and long service life. Ideal for telecom, radar, test, and marine applications, it provides a stable, professional interconnection between TNC and SMA interfaces while meeting global standards.
Product Performance Details
| Product model |
TNC/SMA-KJ |
Contact resistance |
Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ
Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ |
| Characteristic impedance |
50 ohm |
Body material |
Gold-plated brass |
| Frequency range |
DC-6GHz |
Insulator |
PTFE |
| Voltage standing wave ratio |
≤1.25 |
Central conductor |
Gold-plated beryllium copper |
| Medium pressure resistance |
1000V RMS |
Temperature range |
-45℃~+125℃ |
| Dielectric constant |
≥5000MΩ |
Durability |
≥500 Cycles |

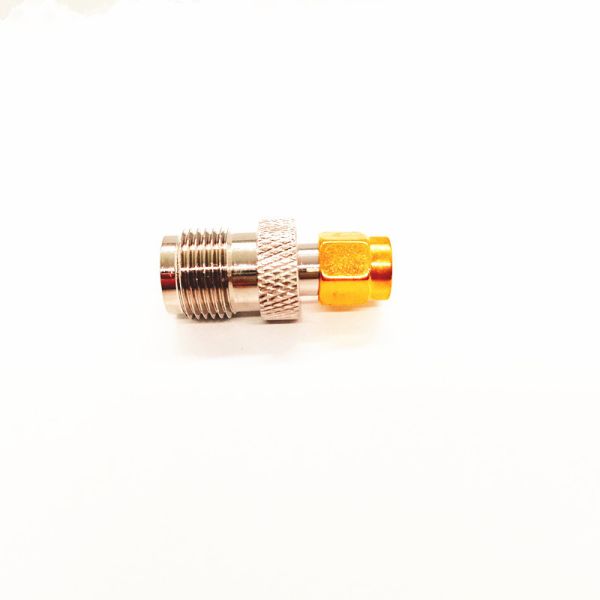

Physical product display

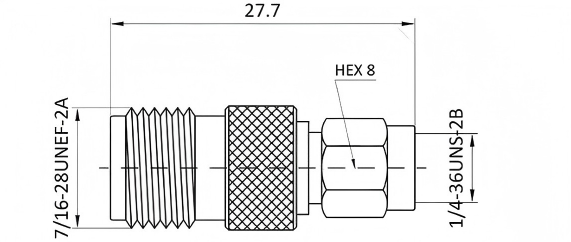

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
