TNC/SMA-KK 50Ω TNC Female To SMA Female RF Adapter
TNC/SMA-KK is a high-performance 50Ω RF adapter featuring a TNC male connector and an SMA female bulkhead mount design, enabling seamless signal conversion between TNC and SMA interface systems. Constructed with a durable stainless steel body, gold-plated contacts, and PTFE dielectric, it delivers low insertion loss, excellent VSWR performance, and reliable signal transmission up to 6GHz. Engineered for secure panel installation via bulkhead mounting, it ensures exceptional corrosion resistance and durability in harsh environments. Ideal for telecommunications, base stations, test instruments, aerospace, aerospace systems, and industrial RF equipment, this adapter provides stable, long-lasting connections with strict quality testing and custom support available.
Product display
Product Performance Details
| Product model |
TNC/SMA-KK |
Contact resistance |
Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ
Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ
|
| Characteristic impedance |
50 ohm |
Body material |
Gold-plated brass |
| Frequency range |
DC-6GHz |
Insulator |
PTFE |
| Voltage standing wave ratio |
≤1.25 |
Central conductor |
Gold-plated beryllium copper |
| Medium pressure resistance |
1000V RMS |
Temperature range |
-45℃~+125℃ |
| Dielectric constant |
≥5000MΩ |
Durability |
≥500 Cycles |

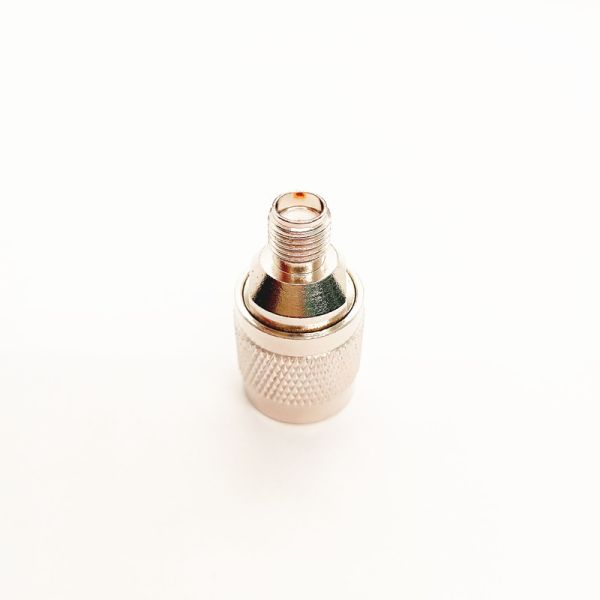

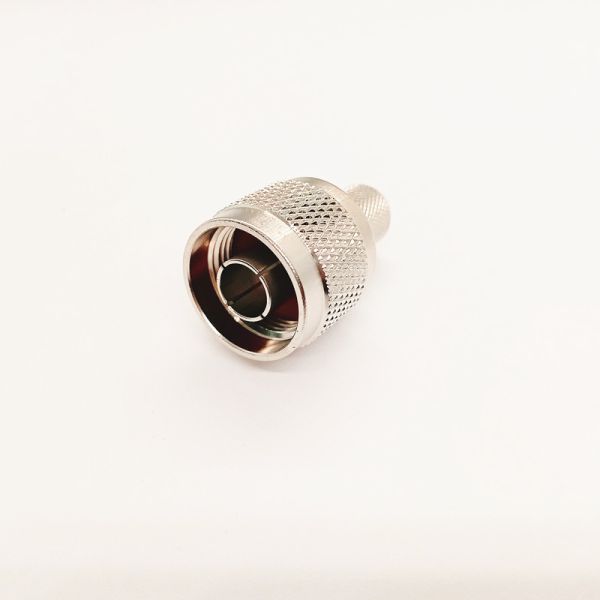

Physical product display
Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
