RF Connector BNC Male Right Angle PCB Mount RF Connector
BNC male right angle PCB mount RF connector is a high-performance 50Ω coaxial connector designed for direct PCB soldering. With a frequency range of DC to 4GHz and low VSWR, it delivers stable, low-loss signal transmission for video systems, test equipment, and RF communication. Featuring a brass body, gold-plated contacts, and PTFE dielectric, it ensures excellent conductivity, corrosion resistance, and long service life. The 90° right angle design saves space, making it ideal for compact devices and panel mount applications.
Product display
Product Performance Details
| Product model |
BNC-JWF09 |
Contact resistance BNC |
Center contact:≤1.5mΩ
Outer contact:≤1mΩ
|
| Characteristic impedance |
50 ohm |
Body material BNC |
Nickel-plated brass
|
| Frequency range |
DC-4GHz |
Temperature range |
-55℃-- +125℃ |
| Voltage standing wave ratio |
≤1.2
|
Central conductor
|
Gold-plated brass
|
| Medium pressure resistance |
≥1500V RMS ,50Hz, at sea level
|
Insulating material |
PTFE
|
| Dielectric constant |
≥5000MΩ
|
Durability |
≥500 times
|

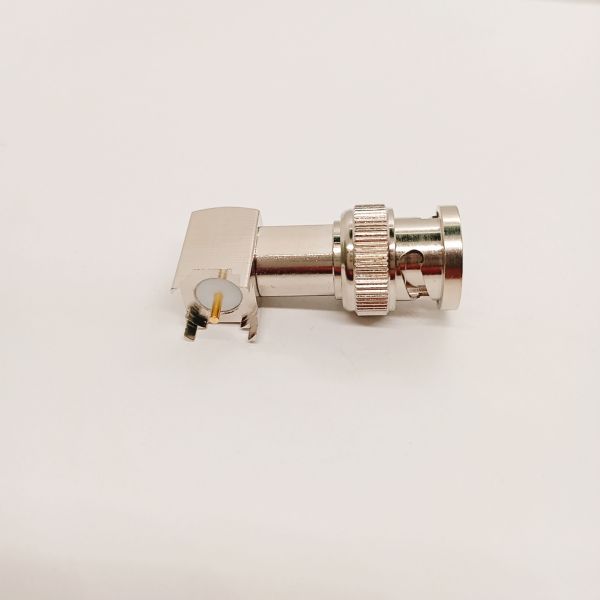

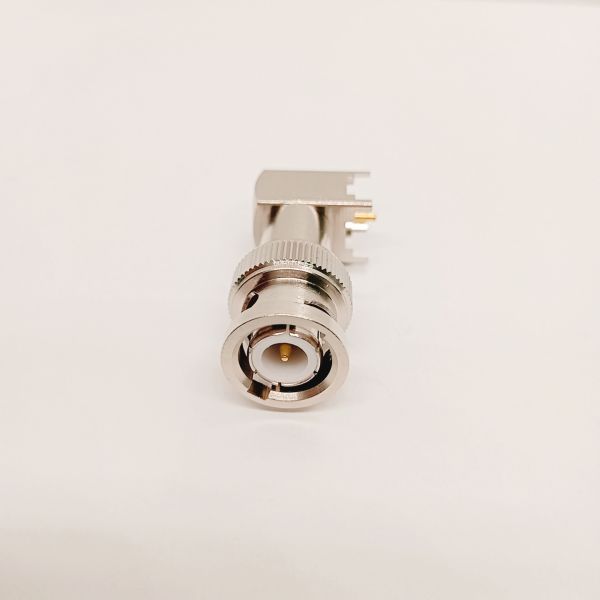

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
