Y11*P-0804TK5 Shielded Circular Connector 4 Pin Aviation Connector for Aerospace
Y11*P-0804TK5 is a high-reliability Y11 series bayonet-locked circular connector with 4 contacts, adopting shielded nickel-plated aluminum shell and solder contact termination, featuring fast plug-in locking, excellent EMI shielding, wide temperature resistance from -55°C to +125°C, strong vibration and shock resistance, IP65 dustproof and waterproof performance, more than 500 mating cycles, and compliance with high-grade environmental standards, perfectly suitable for aerospace, industrial automation, communication equipment, marine electronics and precision instrument signal and power connection applications.
Product display
Product Performance Details
| Product model |
Y11*P-0804TK5 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
10A |

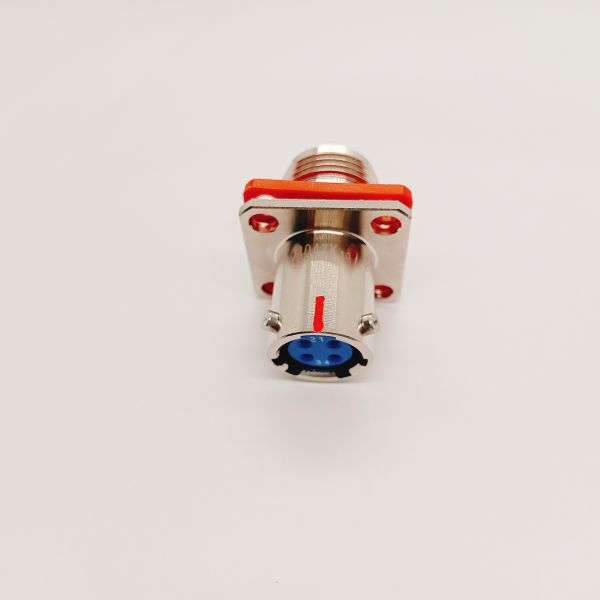

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
