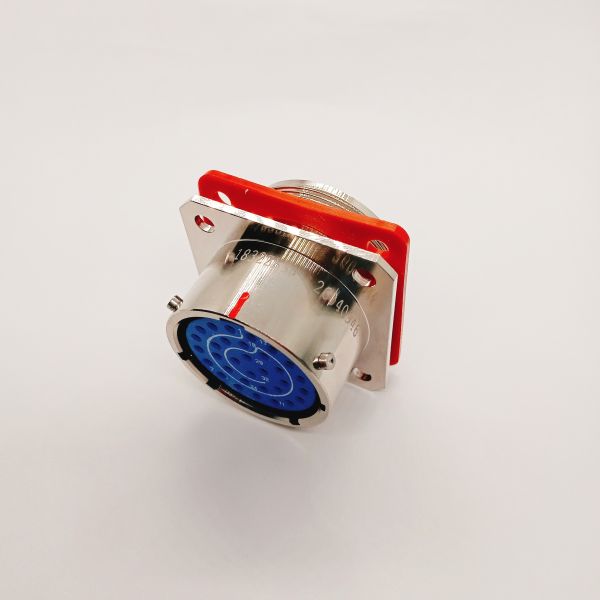

Circular Connector Y11*P-1419TK5 19-Pin Plug Male Aviation Connector
Y11*P-1419TK5 is a Y11 series 19-Pin bayonet aviation plug, featured with shielded nickel-plated aluminum housing, IP65 dustproof and waterproof, good EMI shielding performance. It adopts high-precision gold-plated contacts, supports wide temperature range -55°C to +125°C, anti-vibration, anti-shock and more than 500 mating cycles, widely used in aerospace, industrial automation and marine electronic equipment signal and power connection.
Product display
Product Performance Details
| Product model |
Y11*P-1419TK5 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
10A |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
