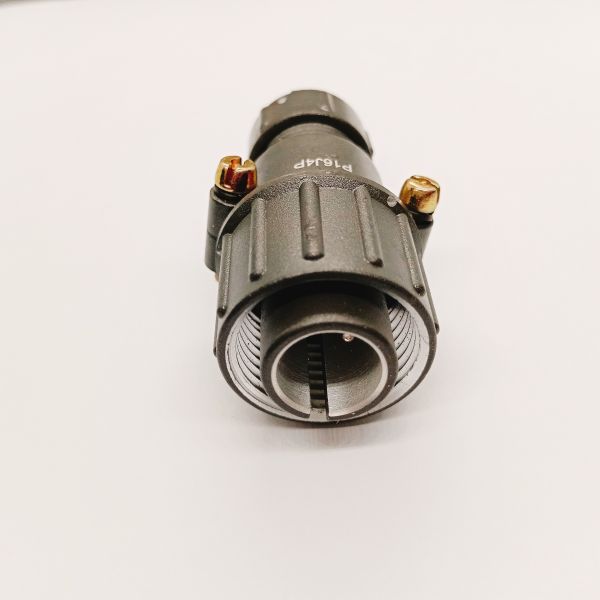

P Type Circular Aviation Connector 4 Pin Male Connector P16J4AP With Shielding
P16J4AP is a lightweight aluminum alloy female connector belonging to the P-series circular connectors. This 16mm 4-pin nut-mount connector adopts compression sealing structure, providing ultra-low leakage rate and excellent insulation performance. With stable electrical performance, wide temperature resistance and anti-vibration capability, it is widely used in vacuum chambers, laboratory instruments and semiconductor equipment. Standard products are in stock with customizable silver-plated pins.
Product display
Product Performance Details
| Product model |
P16J4AP |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~200Hz 98m/s2 |
Working voltage |
500V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
40-100 time/min. 245m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 98% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +70℃ |
Working Current |
10A |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
