Y17P*-1207TJ5 7 Pin Bayonet Circular Connector Male Plug Shielded Aviation Connector
Y17P*-1207TJ5 is a reinforced shielded bayonet-type circular male aviation plug with 7 gold-plated pins. Rated 5A current and 500V voltage, this extended-tail connector effectively prevents cable breakage and enhances tensile resistance. Featuring quick bayonet locking, excellent electromagnetic shielding and vibration resistance, it ensures stable signal transmission in complex industrial environments. It perfectly matches Y17P-1207ZK socket, widely used for industrial control, instrumentation and electronic connection systems.
Product display
Product Performance Details
| Product model |
Y17P*-1207TJ5 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
10A |

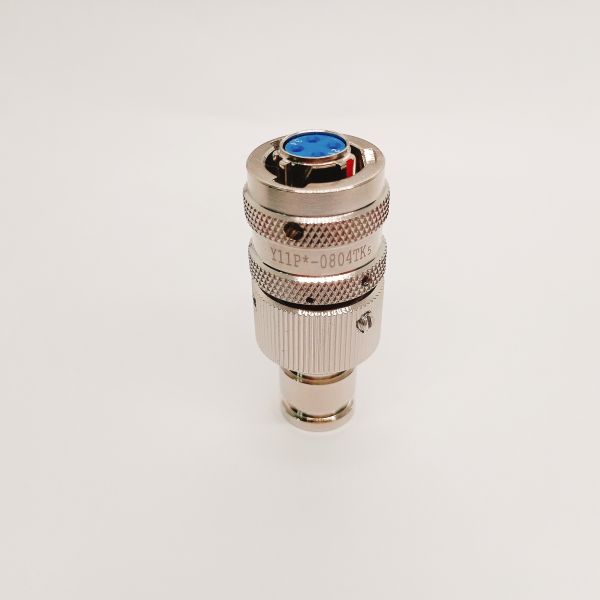

Physical product display

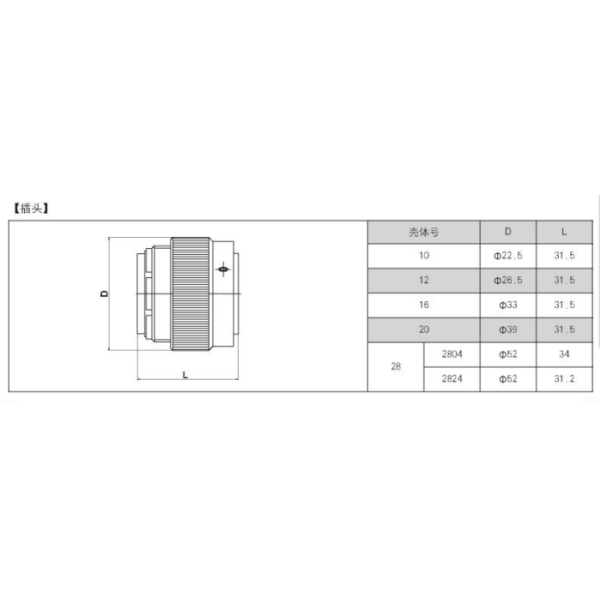

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
