Circular Connector Y3A-2255ZJ10 Y3A Series 55 Pin Straight Female Screw Lock Aviation Plug Connector
Y3A-2255ZJ10 is a standardized general-purpose circular aviation connector belonging to Y3A series. This 55-position straight female receptacle adopts high-strength aluminum alloy shell with anti-oxidation surface treatment and precision gold-plated contacts, ensuring stable conductivity and low contact resistance. Featuring threaded locking structure and excellent sealing performance, it is dustproof and moisture-proof for long-term stable operation. With strong mechanical shock resistance and vibration resistance, this standardized connector is widely used in electronic equipment, instrumentation, aerospace and industrial control systems. Standard dimensional and mechanical specifications ensure interchangeability, mature technology and sufficient inventory support bulk supply.
Product display
Product Performance Details
| Product model |
Y3A-2255ZJ10 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
10A |

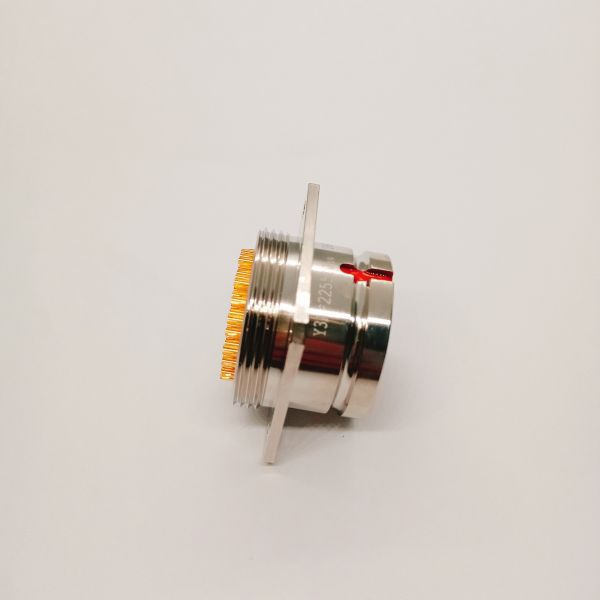

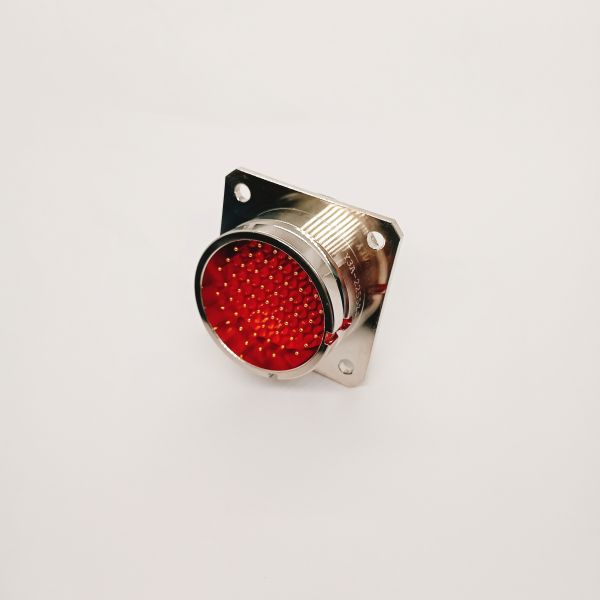

Physical product display
Product external dimensions

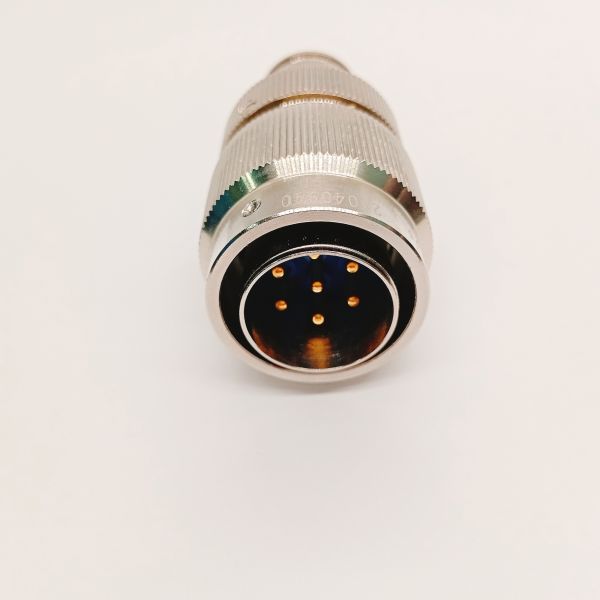

Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
