Y3A Series 32 Pin Circular Aviation Connector With Four-Hole Flange Socket Y3A-1832ZJ10
Y3A-1832ZJ10 is a 32-contact bayonet-locking circular pin connector, the male counterpart of the Y3A-1832TJ5 socket. Featuring a flange-mount, potting-sealed design, it offers excellent environmental protection. Made of high-strength alloy housing and gold-plated copper contacts, this plug delivers stable electrical performance, high vibration resistance, and a long service life. It supports quick mating and blind insertion, ideal for aerospace, industrial control, and communication systems requiring reliable signal and power transmission in harsh environments.

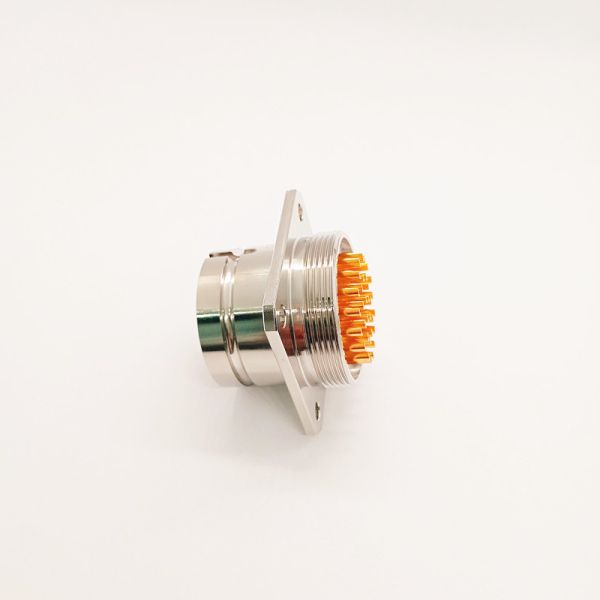

Product display
Product Performance Details
| Product model |
Y3A-1832ZJ10 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
5A |

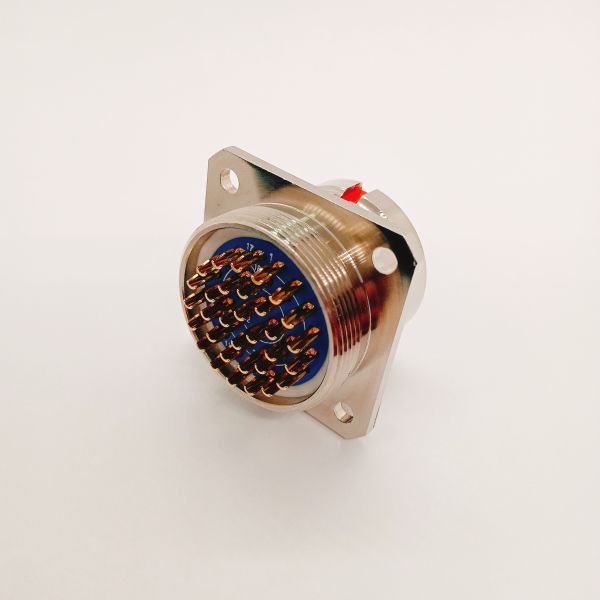

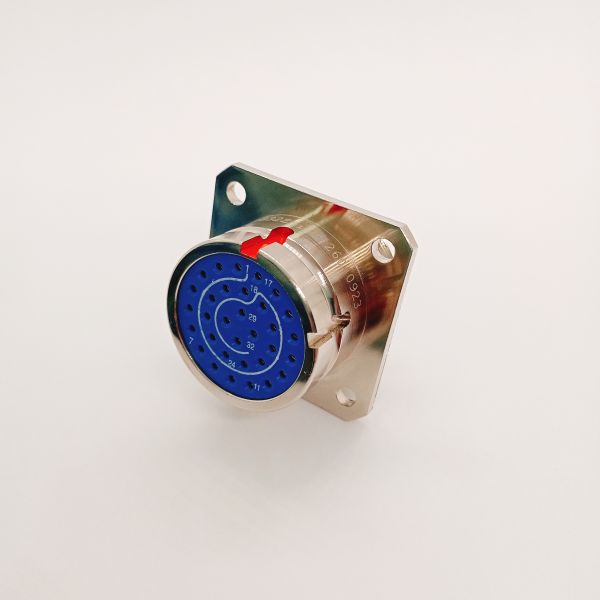

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
