Circular Aviation Connector Y17P*-1604TK5 Bayonet 4 Pin Male Plug Straight Connector
Y17P*-1604TK5 belongs to Y17 series high-reliability circular connectors, 16# shell with 4 contacts, TK5 straight cable tail structure. Adopts 3-slot bayonet quick lock design, fast mating and unmating, anti-loose under strong vibration and shock.
Operating temperature range -55℃~125℃, with excellent moisture, salt spray and dust resistance. Gold-plated contact ensures low contact resistance and stable power & signal transmission.Widely used in aerospace, railway, marine, industrial control, vehicle equipment and field exploration instruments.

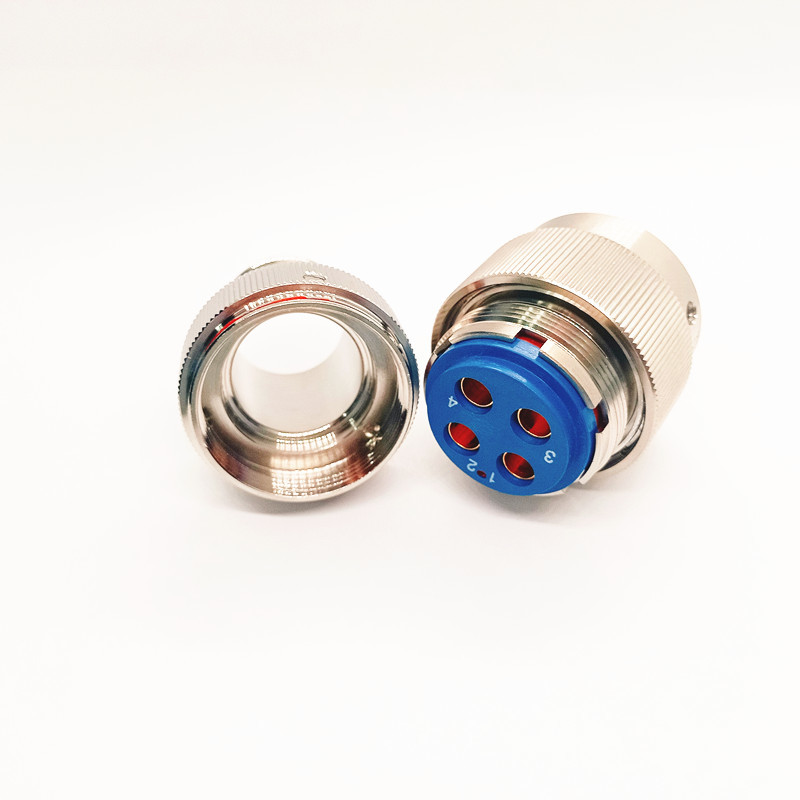

Product display
Product Performance Details
| Product model |
Y17P*-1604TK5 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 98m/s2 |
Working voltage |
600V |
| Insulator |
PPS |
Mechanical life |
500 times |
| Impact |
490m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1000V |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
30A |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
