Y11P*-1419TJ5 19 Pin Straight Bayonet Aviation Plug 14 Shell Size Circular Electrical Connector
Y11P*-1419TJ5 is a 14-shell 19 Pin bayonet circular aviation connector complying with GJB101A standard, featuring nickel-plated aluminum alloy housing, gold-plated contacts, IP67 dustproof and waterproof performance, wide operating temperature from -55℃ to 125℃, shock and vibration resistance, quick bayonet locking and over 500 mating cycles; this panel-mount solder-type plug delivers stable anti-interference signal transmission, widely used in aerospace, radar, navigation, industrial control and communication testing equipment.

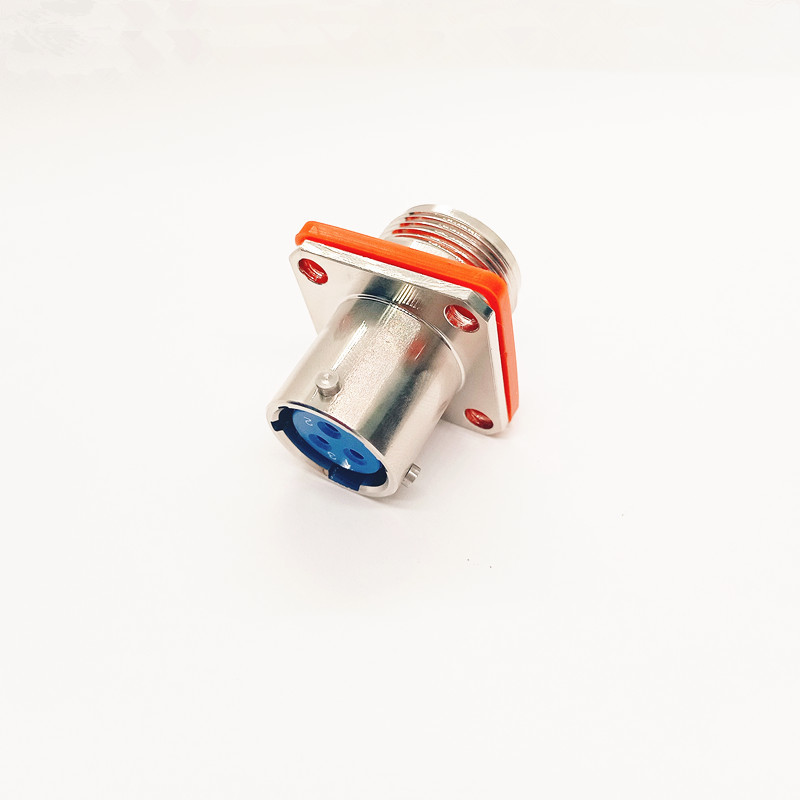

Product display
Product Performance Details
| Product model |
Y11P*-1419TJ5 |
Contact piece |
Gold plating of copper alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥3000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Working voltage |
600V |
| Insulator |
Thermosetting plastics |
Mechanical life |
500 times |
| Impact |
980m/s2 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Collision |
Acceleration 392m/s2 |
Withstand voltage |
1500Vrms |
| Working temperature |
-55℃ ~ +125℃ |
Working Current |
5A |

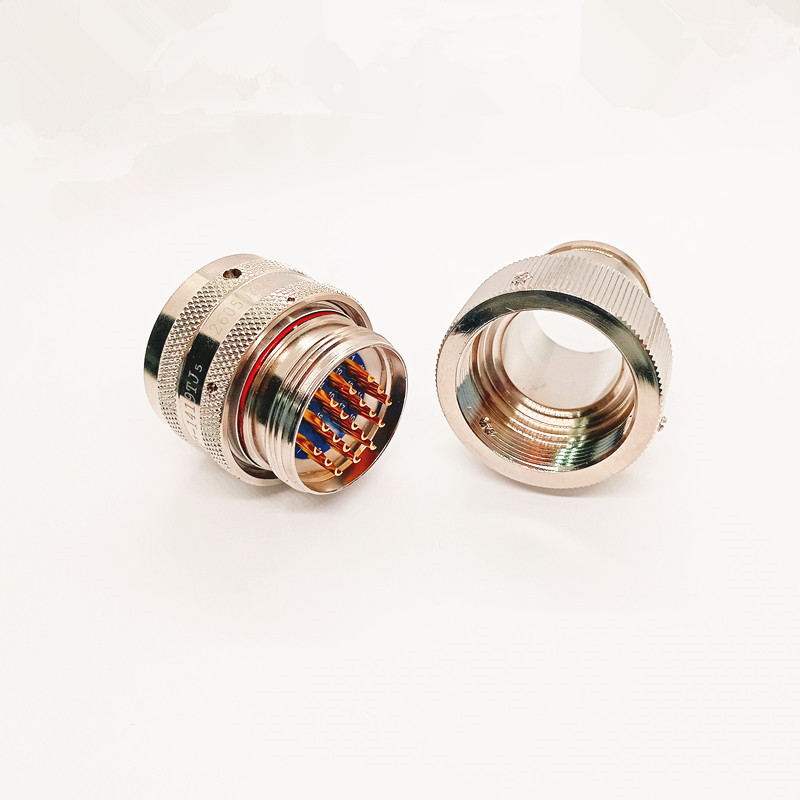

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
