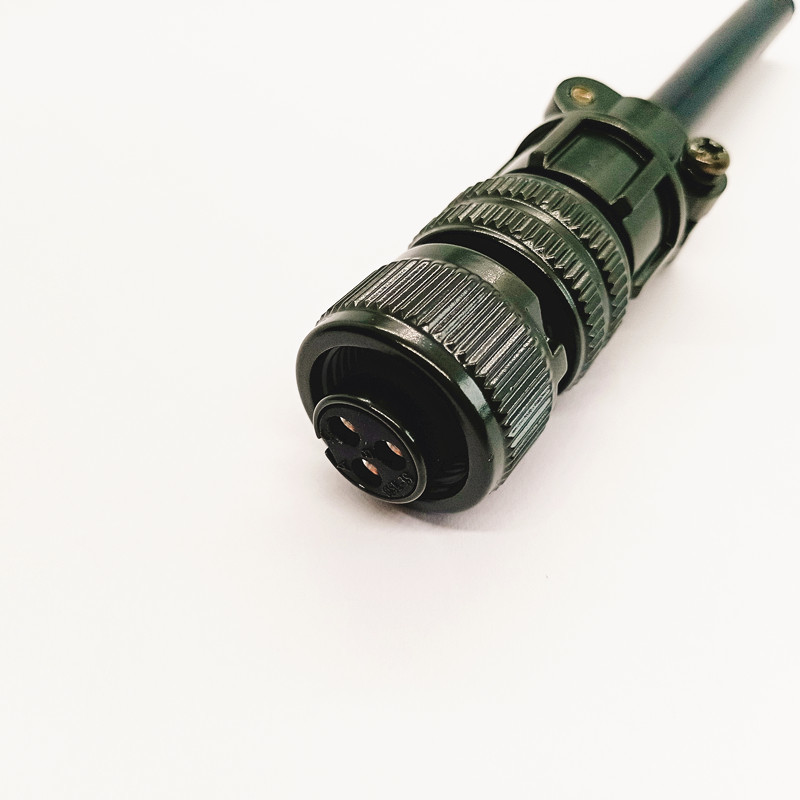

MIL-5015 Series Circular Connector Product MS3106A10SL-3S Straight Plug Connector
MS3102A10SL-3S is a screw-locking circular aviation receptacle with jam nut panel mounting structure, size 10SL shell and 3-position female contact layout. It is a classic MIL-5015 series industrial & circular connector, constructed with high-strength aluminum alloy housing, heat-resistant thermoset insulator and gold-plated copper contacts. The screw-thread locking design provides firm anti-loosening connection under strong vibration, and built-in rubber sealing ring realizes dustproof and waterproof performance. Widely used for power and signal transmission in aviation, industrial machinery, new energy and test equipment under harsh environments.
Product display
Product Performance Details
| Product model |
MS3102A10SL-3S |
Contact piece |
Copper Alloy |
| Shell material |
Aluminum alloy |
Insulation resistance |
≥5000MΩ |
| Vibration |
Complies with the MIL‑DTL‑38999 |
Working voltage |
1800V |
| Insulator |
PPS |
Mechanical life |
500 times |
| Impact |
Complies with the MIL‑DTL‑38999 |
Relative humidity |
When the temperature is 40±2℃, it is 90% to 95% |
| Contact resistance |
≤5mΩ |
Withstand voltage |
1500V |
| Working temperature |
-65℃ ~ +200℃
|
Working Current |
5 A |
Physical product display
Contact Layout
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
